Original price was: ₹400.00.₹350.00Current price is: ₹350.00.

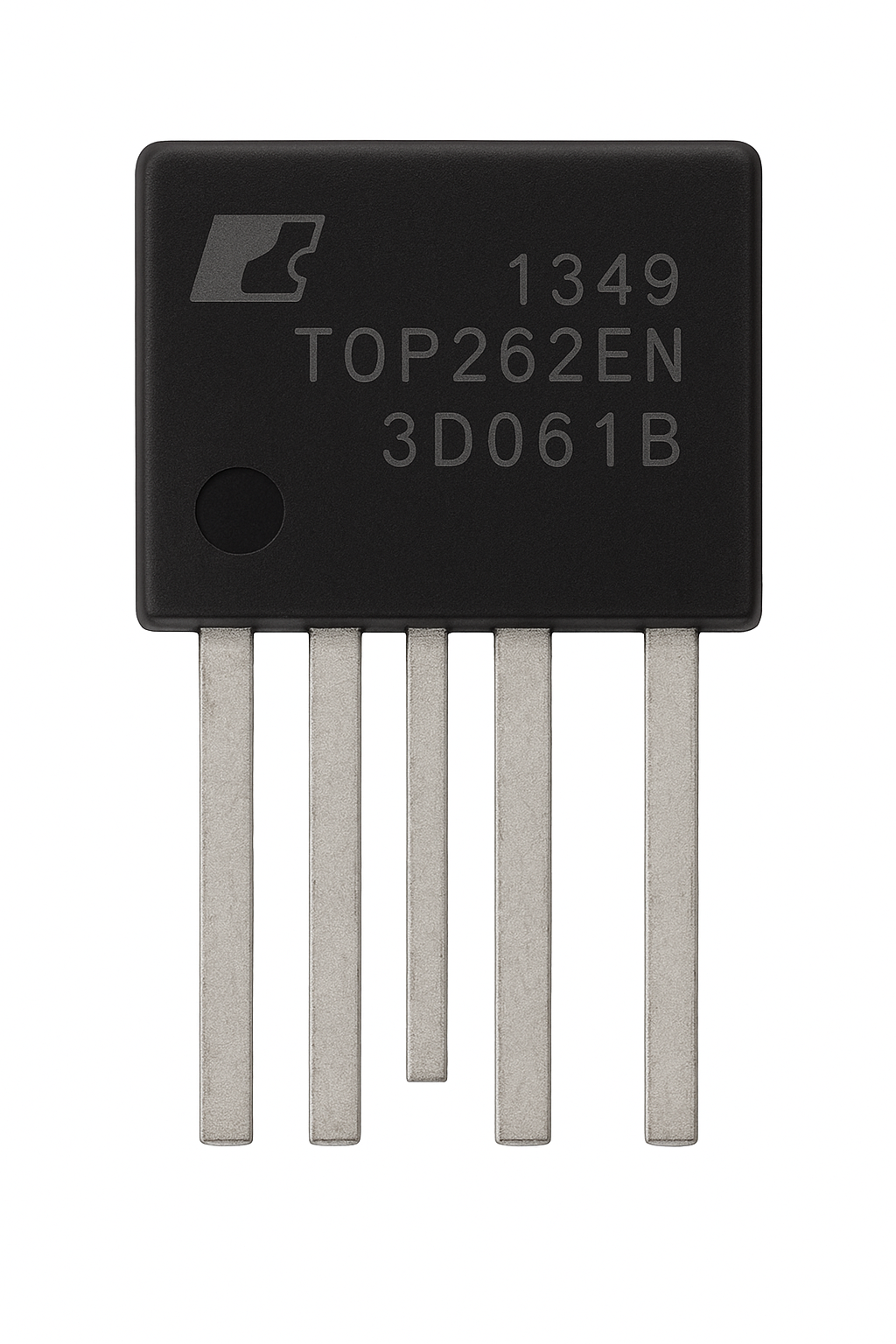

TOP262EN is a high-performance PWM switcher IC from Power Integrations’ TOPSwitch-HX family, designed for medium to high-power SMPS designs with excellent efficiency, low standby power, and reduced external components. It integrates a 700V MOSFET, PWM controller, high-voltage startup, loop compensation, and full protection circuitry into a single IC — making power supply development faster, smaller, and more reliable.
It supports 100W–150W (adapter applications) and up to 290W in open-frame designs with proper thermal management.
✔ HX Family – High Power, High Efficiency
✔ Integrated 700V MOSFET
✔ Universal AC Input: 85V–265V AC
✔ Up to 150W (Adapter) / 290W (Open Frame)
✔ Frequency Jittering for EMI Reduction
✔ Adjustable Switching Frequency (66 kHz – 132 kHz)
✔ Multi-mode operation (EcoSmart® technology)
✔ Built-In Protections: OVP, OTP, SCP, UVLO, Auto-Restart
✔ Very low standby power – <200mW
| Parameter | Details |
|---|---|
| Model | TOP262EN |
| Family | TOPSwitch-HX |
| Package | eSIP-7C (7-pin) |
| MOSFET Drain Voltage | 700V |
| Max Power (Adapter) | ~100W to 150W |
| Max Power (Open-Frame) | Up to 290W |
| Switching Frequency | 132 kHz (jittered) |
| Standby Power | <200mW |
| RDS(on) | ~0.95Ω |
| Startup Time | <1s |
| Operating Temperature | –40°C to +150°C |
🔹 High-power SMPS (12V, 24V, 48V Outputs)
🔹 Industrial Battery Chargers
🔹 Telecom Power Supplies
🔹 LED Drivers & Lighting Solutions
🔹 Server / Network Power Modules
🔹 LCD/LED TV Power Boards
🔹 Home Appliances & IoT Gateways
🔹 Electric Vehicle Charger Modules (Low Watt)
✔ Over-Temperature Protection (OTP)
✔ Over-Voltage Protection (OVP)
✔ Under-Voltage Lockout (UVLO)
✔ Short-Circuit & Overload Protection
✔ Auto-Restart Recovery
| Feature | HX Family Advantage |
|---|---|
| Efficiency | 90%+ possible |
| Power Handling | Supports higher wattage than EN/JX/PN series |
| Standby Power | Ultra-low consumption |
| EMI Performance | Built-in frequency jittering |
| Design Simplicity | Fewer external components |
| Universal Use | Works globally (110V–265V AC) |
